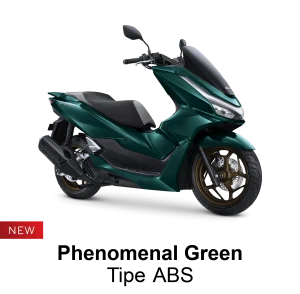

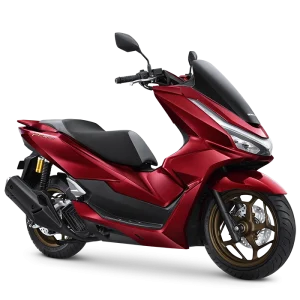

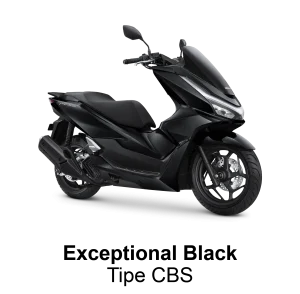

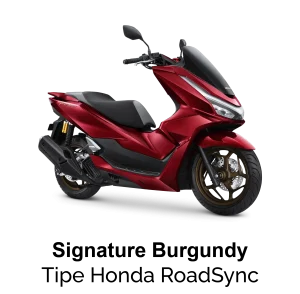

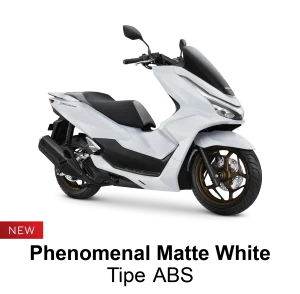

PCX 160 ABS Jogja
Harga mulai Rp38.410.000
| Tipe Mesin | 4-Langkah, 4-Valve, eSP+ |
| Tipe Pendingin | Pendingin Cairan |
| Sistem Suplai Bahan Bakar | PGM-FI (Programmed Fuel Injection) |
| Volume Langkah | 156,9 cc |
| Diameter X Langkah | 60 x 55,5 mm |
| Perbandingan Kompresi | 12:1 |
| Daya Maksimum | 11,8 kW (16 PS) / 8.500 rpm |
| Torsi Maksimum | 14,7 Nm (1,5 kgf.m) / 6.500 rpm |
| Tipe Transmisi | Otomatis, V-Matic |
| Tipe Starter | Elektrik |
| Tipe Kopling | Otomatis, Sentrifugal, Tipe Kering |
| Kapasitas Minyak Pelumas | 0,8 liter (Penggantian Periodik) |
| Tipe Rangka | Double Cradle |
| Ukuran Ban Depan | 110/70 – 14 M/C Tubeless |
| Ukuran Ban Belakang | 130/70 – 13 M/C Tubeless |
| Sistem Pengereman Depan | Cakram hidrolik – (Tipe CBS) Triple Pots Hydraulic, Combi Brake System / (Tipe ABS & RoadSync) Anti Lock Braking System |
| Sistem Pengereman Belakang | Cakram Hidrolik |
| Tipe Suspensi Depan | Teleskopik |
| Tipe Suspensi Belakang | (Tipe CBS & ABS) Suspensi Belakang Ganda / (Tipe RoadSync) Suspensi Belakang Ganda dengan Tabung |
| Panjang X Lebar X Tinggi | 1.936 x 742 x 1.123 mm |
| Jarak Sumbu Roda | 1.313 mm |
| Jarak Terendah Ke Tanah | 135 mm |
| Tinggi Tempat Duduk | 764 mm |
| Berat Kosong | 132 kg (CBS), 132 kg (ABS) & 133 kg (RoadSync) |
| Kapasitas Tangki Bahan Bakar | 8,1 liter |
| Sistem Pengapian | Full Transisterized |
| Tipe Baterai/Aki | 12 V – 5 Ah, tipe MF |
| Tipe Busi | NGKLMAR8L-9 |
| Power Charger | 5V, 3A |
